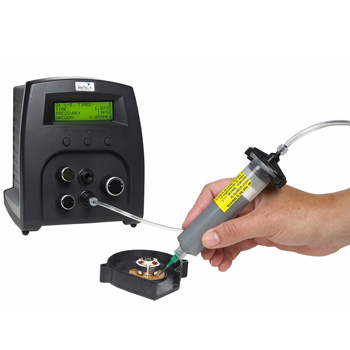

Metcal DX-350 Taikang Digital Glue Dispensing Machine
Metcal DX-350 Taikang Digital Glue Dispensing Machine
-
DX-350 is a fully digital dispensing machine driven by a microprocessor. The DX-350 has an intuitive usage method and can uniformly and accurately locate low, medium, and high viscosity fluids.
- Its processor firmware provides programmable functionality, which can program 10 different, continuous, or individual glue points.
- The DX-350 includes an adjustable vacuum driven "suction back" device to control "residual" solder and reduce waste.
DESCRIPTION
DX-350Series digital dispensing machine
- DX-350 is a fully digital dispensing machine driven by a microprocessor. The DX-350 has an intuitive usage method and can uniformly and accurately locate low, medium, and high viscosity fluids.
- Its processor firmware provides programmable functionality, which can program 10 different, continuous, or individual glue points.
- The DX-350 includes an adjustable vacuum driven "suction back" device to control "residual" solder and reduce waste.
Main features and advantages
- Compact and lightweight
- 10 programmable programs and 4 operating modes
- Digital timer, pressure and vacuum readings
- Accurately replicate the sequence of solder beads or solder joints
- Adjustable vacuum control device to prevent fluid dripping between dispensing cycles
- There are two operating pressures to choose from: 0-100psi for regular applications and 0-15psi for special low viscosity applications
- Ready to use products in packaging, including universal power supply, foot switch, trachea, sample needle, syringe tube, and connector
| Part number | describe |
| DX-350 | Digital glue dispenser 0-100psi (0-6.9bar) |
| DX-350 | Digital glue dispenser 0-15psi (0-1.0bar) |
technical specifications
| Dimensions (width x length x height) | 152mm x 165mm x 178mm (6 inches x 6.5 inches x 7 inches) |
| weight | 1.2 kilograms (2.6 pounds) |
| Cycle rate | 1200 cycles per minute |
| Timing range | 0.008-60.000 seconds |
| Timing tolerance | ＋/－0.001％ |
| input voltage | 100-240 volts AC |
| Input frequency | 50-60Hz |
| Memory | 10 types of programmable programs |
| Loop mode | Timer, Interruption, Teaching, Manual |
| authentication | CE,TUV-GS,NRTL |
| guarantee | 1 year |
